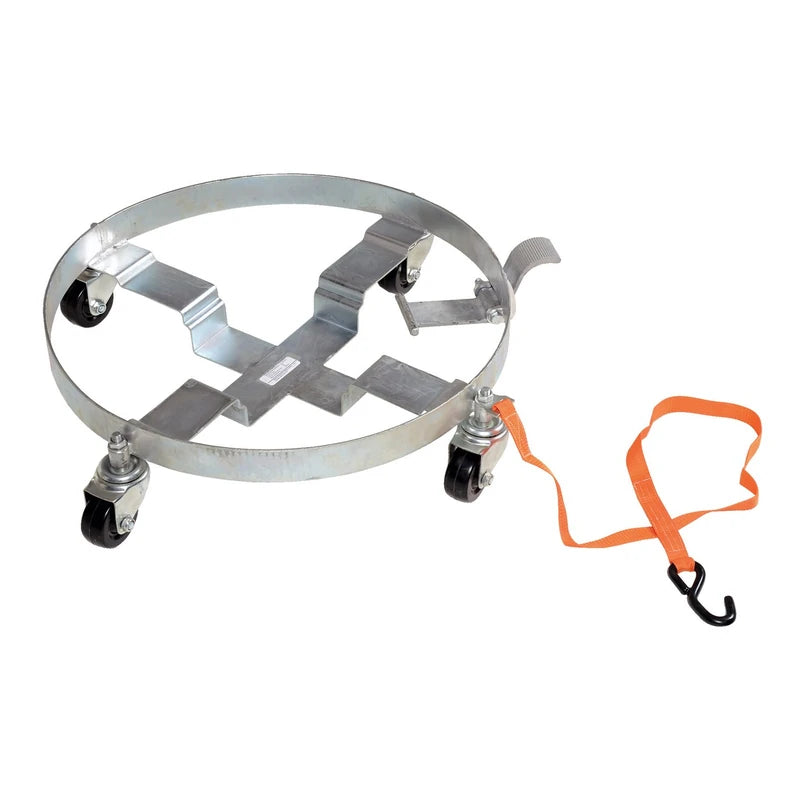

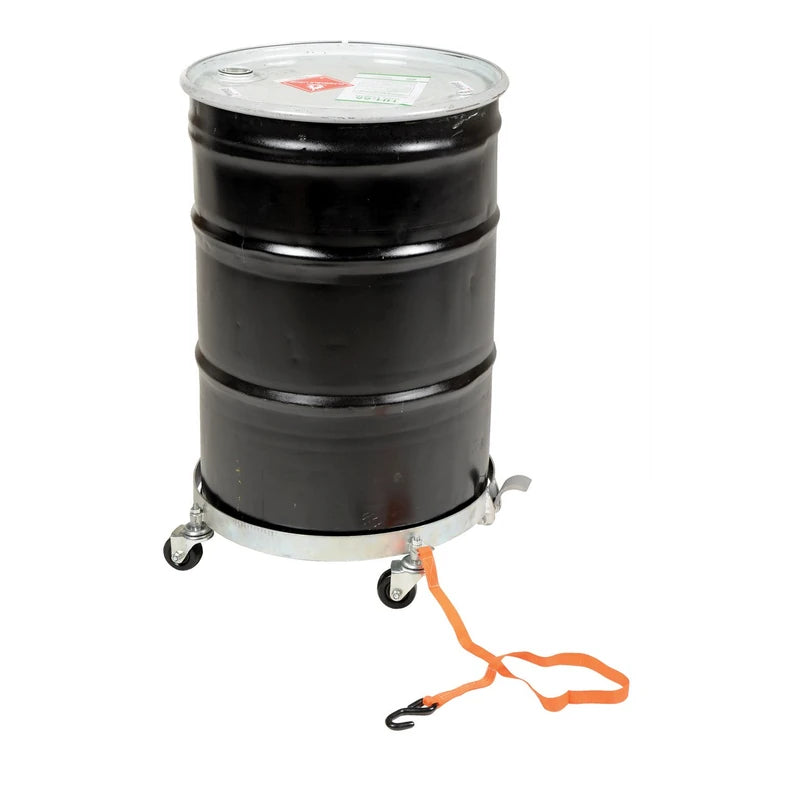

This Vestil steel tilting drum dolly helps warehouse and maintenance teams move compatible containers and position drums for liquid extraction. Its uniform load capacity is 900 lb in the upright position. Tilting is limited to 55-gallon drums and a 200 lb uniform load. The foot-operated mechanism provides a 10° tilt and locks when activated.
One Dolly for Several Container Sizes
The dolly transports 5-gallon pails, 30- and 55-gallon drums, and LP gas tanks. Transport compatibility does not mean every container can be tilted: the tilt mechanism works only with the outside, largest drum size—55 gallons.

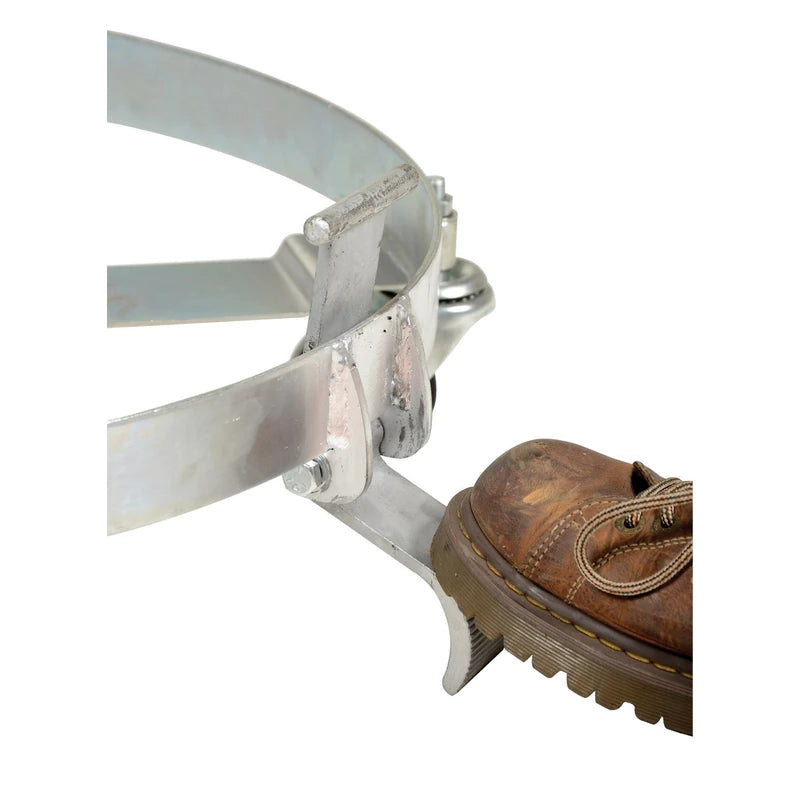

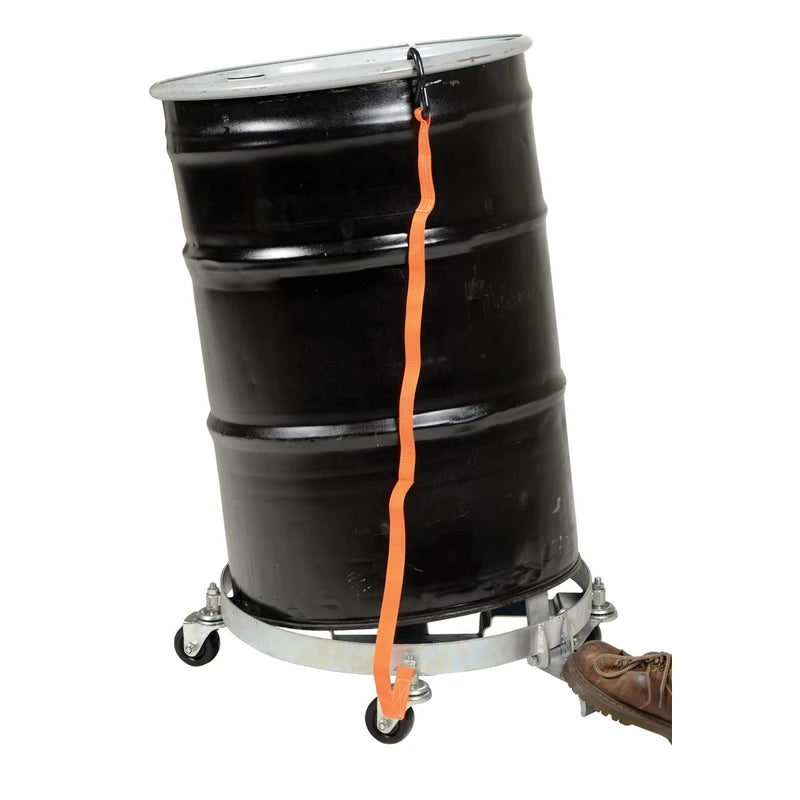

Foot-Operated Tilt for Liquid Extraction
The tilt lever lets you position a suitable drum at an angle to help extract liquid. Observe the separate 200 lb tilt rating whenever using this feature; the 900 lb upright rating does not apply while tilted.

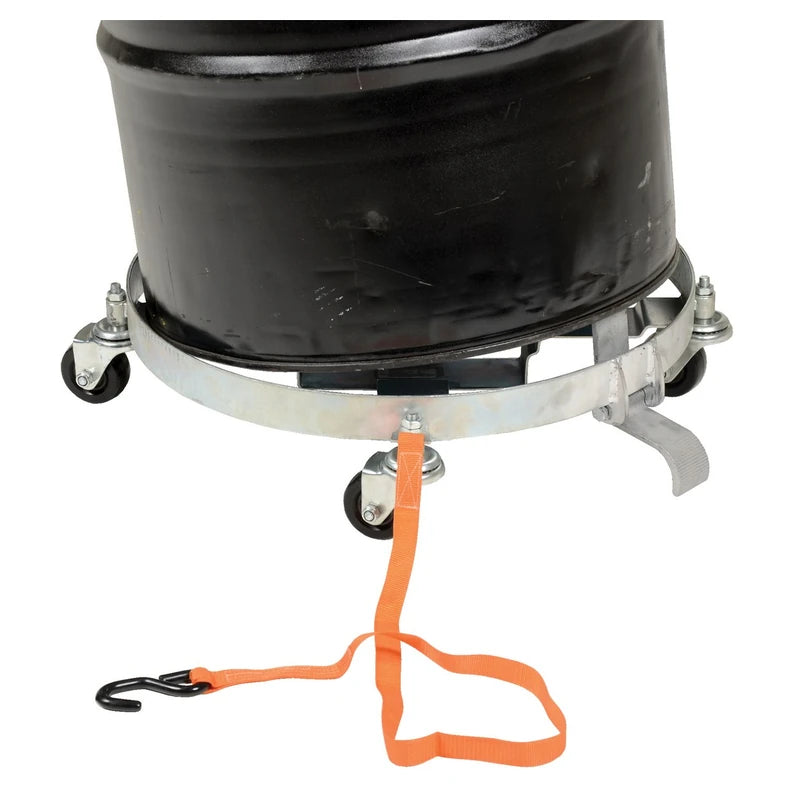

Swivel Casters and an Included Pull Strap
Four hard-rubber swivel casters, each 3 in. in diameter and 1-1/4 in. wide, allow the dolly to change direction during material handling. A 48 in. pull strap is included. The steel frame has a 23-1/2 in. usable diameter, while the complete dolly measures 30-7/8 in. across overall and 6-1/4 in. high. Allow for the overall dimensions when planning storage and access.
Key Features
- 900 lb uniform upright load capacity
- 10° foot-operated, locking tilt with a separate 200 lb uniform tilt limit
- Tilt feature for 55-gallon drums only
- Multipurpose container support for pails, drums and LP gas tanks
- Four hard-rubber swivel casters
- Steel construction and included 48 in. pull strap
What's Included
| Item |
Quantity |
| Vestil steel tilting drum dolly |
1 |
| 48 in. pull strap |
1 |
Product Specifications
| Brand |
Vestil |
| Manufacturer Model |
DRUM-QUAD-H-TLT |
| SCN Model |
DC023 |
| Product Type |
Steel Tilting Drum Dolly |
| Uniform Load Capacity |
900 lb |
| Uniform Tilt Capacity |
200 lb |
| Tilt Angle |
10° |
| Tilt Operation |
Foot-operated; locks when activated |
| Transport Compatibility |
5-gallon pails, 30- and 55-gallon drums, and LP gas tanks |
| Tilt Compatibility |
55-gallon drums only |
| Usable Diameter |
23-1/2 in. |
| Overall Diameter |
30-7/8 in. |
| Overall Height |
6-1/4 in. |
| Caster Quantity |
4 |
| Caster Type |
Swivel |
| Caster Material |
Hard rubber |
| Caster Size |
3 in. diameter × 1-1/4 in. wide |
| Frame Material |
Steel |
| Colour |
Silver |
| Pull Strap |
Included; 48 in. long |
Ideal Applications
For container transport in warehouses, production areas and maintenance workshops, with a tilting function for liquid extraction from compatible 55-gallon drums within the 200 lb tilt limit.
