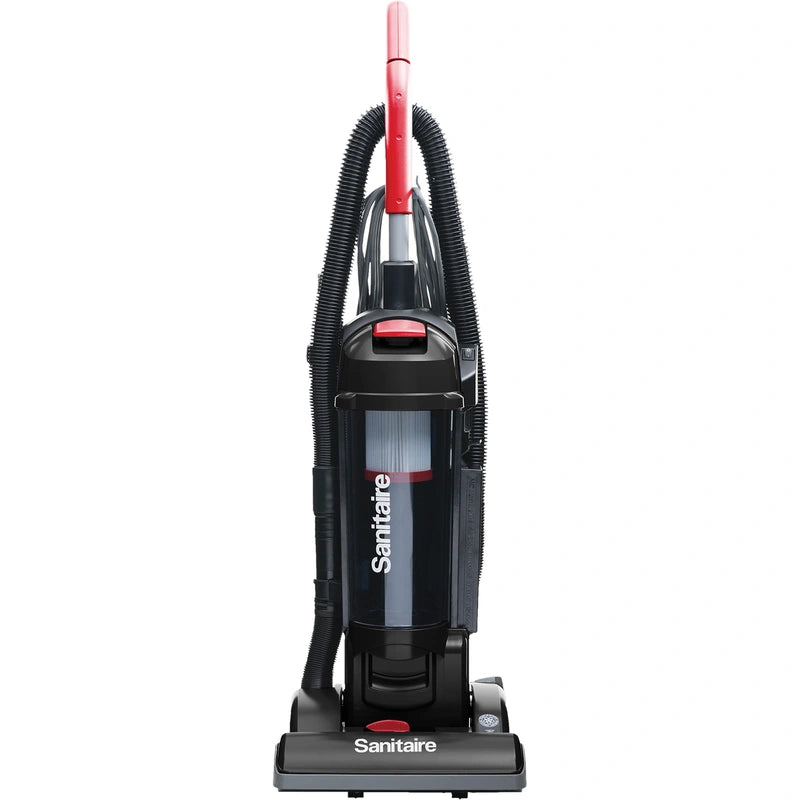

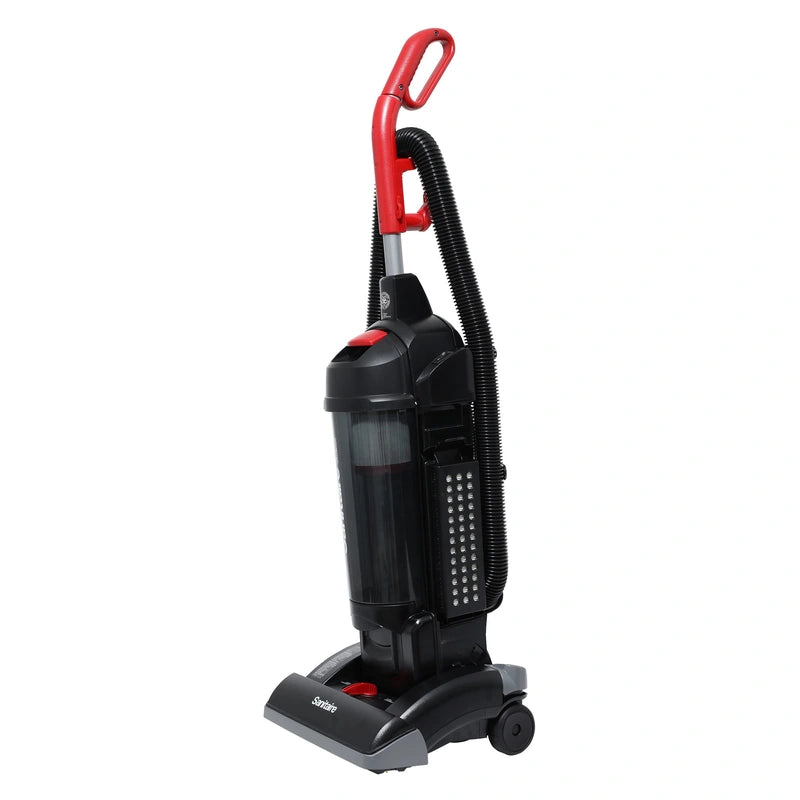

The Sanitaire SC5745D FORCE QuietClean Commercial Upright Vacuum combines a 13-inch cleaning path, 135 CFM airflow and a reusable 3.5-quart bagless dirt cup for routine commercial carpet care. A 40 ft. detachable cord supports movement through the work area, while onboard tools extend cleaning to furniture and above-floor surfaces.
This is a dry, bagless upright: collected debris is emptied from the cup rather than discarded in a replaceable dust bag. The package includes a washable HEPA filter, stretch hose, two-piece wand, crevice tool and dusting brush.
Bagless Carpet Care with Adjustable Height
The reusable dirt cup removes the need to buy replacement collection bags for this configuration. Empty it regularly and keep its filters clean to support airflow. Seven height settings let the operator adjust the cleaning head to the carpet, following Sanitaire's instructions.
A 10-amp motor supplies the manufacturer's published 135 CFM airflow. The 13-inch brush-roll head suits routine carpet routes, while the detachable 40 ft. cord provides reach without repeatedly moving the power connection over short sections.
QuietClean Operation and Verified Carpet Certification
Sanitaire publishes a 70.6 dBA sound level for SC5745D. This gives buyers a model-specific sound figure when planning cleaning in occupied commercial spaces; site conditions still determine when cleaning is appropriate.
The Carpet and Rug Institute's current exact-model record lists Commercial Gold Seal of Approval, SOA100592, with an expiration date of March 31, 2027. This is a carpet-cleaning certification, not approval for hazardous-dust collection or a whole-machine sealed HEPA claim.
Washable HEPA Filter with Clear Maintenance Requirements
The filtration system includes an HF-5 washable HEPA cartridge (61840), DCF-3 dust-cup filter (68903) and pre-motor filter (71480). The HEPA designation describes the filter; this listing does not represent the complete vacuum as a tested, sealed HEPA system.
Switch off and unplug before maintenance. Check the HEPA and pre-motor filters each time the cup is emptied. For the HEPA cartridge, remove loose debris by tapping, brushing or vacuuming with another cleaner; use warm running water if further cleaning is needed. Reassemble only when all parts are completely dry. Do not put filters or cup components in a dishwasher.
The manual calls for HEPA replacement twice a year or as needed. A washable filter still needs replacement if cleaning no longer restores performance. Clean the dust-cup filter with warm water and mild detergent when required; wipe the cup lid rather than submerging it.
Tools for Above-Floor Cleaning

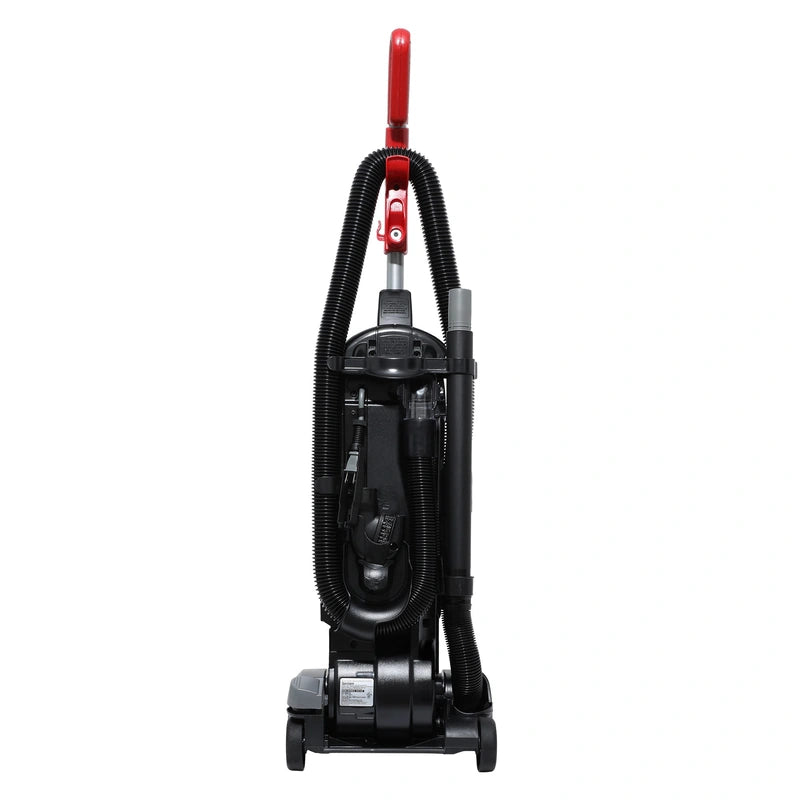

The 10 ft. stretch hose, two-piece wand, crevice tool and dusting brush support cleaning furniture, edges and accessible above-floor areas. Their onboard storage keeps the service tools with the upright between tasks.
The brush roll does not have a shutoff. When using attachments, follow the manual: leave the cleaner on the floor with its handle in the storage position, and do not set the running brush roll on furniture or stairs.
Key Features and Benefits
- Reusable 3.5-quart bagless dirt cup for dry debris collection.
- 13-inch cleaning path with seven height settings.
- Published 135 CFM airflow from a 10-amp motor.
- 40 ft. detachable cord and onboard above-floor tools.
- Washable HF-5 HEPA cartridge with documented cleaning and replacement procedures.
- 70.6 dBA manufacturer sound rating and current exact-model CRI Gold approval.
What's Included
| Item |
Quantity / Configuration |
| SC5745D FORCE QuietClean bagless upright vacuum |
1 |
| 10 ft. stretch hose |
1 |
| Two-piece wand |
1 set |
| Crevice tool |
1 |
| Dusting brush |
1 |
| 40 ft. detachable power cord |
1 |
| HF-5 washable HEPA filter; DCF-3 dust-cup filter; pre-motor filter |
Installed filtration system |
Product Specifications
| Specification |
Details |
| Brand |
Sanitaire |
| Manufacturer model |
SC5745D |
| Supplier / Shopify SKU |
JO219 |
| Vacuum type |
Corded commercial upright; dry pickup |
| Dirt collection |
Bagless reusable dirt cup |
| Dirt-cup capacity |
3.5 qt. |
| Cleaning path |
13 in. |
| Motor current |
10 A |
| Airflow |
135 CFM |
| Power cord |
40 ft., detachable |
| Sound level |
70.6 dBA; manufacturer-published |
| Supplied HEPA filter |
HF-5 washable cartridge; 61840 |
| Other filter identifiers |
DCF-3 dust-cup filter 68903; pre-motor filter 71480 |
| Height adjustment |
7 levels |
| Number of speeds |
1 |
| Brush-roll shutoff |
No |
| Brush roll |
13 in. True Balance; 60844A10 |
| Replacement belt |
Style U; 66120 |
| Included reach tools |
10 ft. stretch hose; two-piece wand; crevice tool; dusting brush |
| CRI Seal of Approval |
Commercial Gold; SOA100592; record expiration March 31, 2027 |
| Manufacturer warranty |
2 years, parts and labour; subject to Sanitaire terms |
Suitable Applications and Use Limits
For routine dry carpet cleaning and furniture or above-floor maintenance in offices, hospitality properties, retail premises and similar commercial interiors. Select the correct height setting and attachment for the surface. This SC5745D is the 13-inch bagless configuration; it is distinct from the bagged SC5713D and the wider 15-inch SC5845D.
Dry indoor use only. Do not use outdoors or on wet surfaces, collect hot or smoking items, or pick up flammable or combustible liquids or operate where they may be present. Keep the dirt cup and filters installed, follow the rating plate and manual for the electrical connection, and unplug before servicing. No asbestos, silica or other hazardous-dust certification is established.
Verified Replacement Part References
Sanitaire lists HF-5 61840, DCF-3 68903 and pre-motor filter 71480 for this exact model. It also specifies Style U belt 66120 and 13-inch brush roll 60844A10. Replacements are separate purchases; these references do not indicate extra spare parts included in the package.
