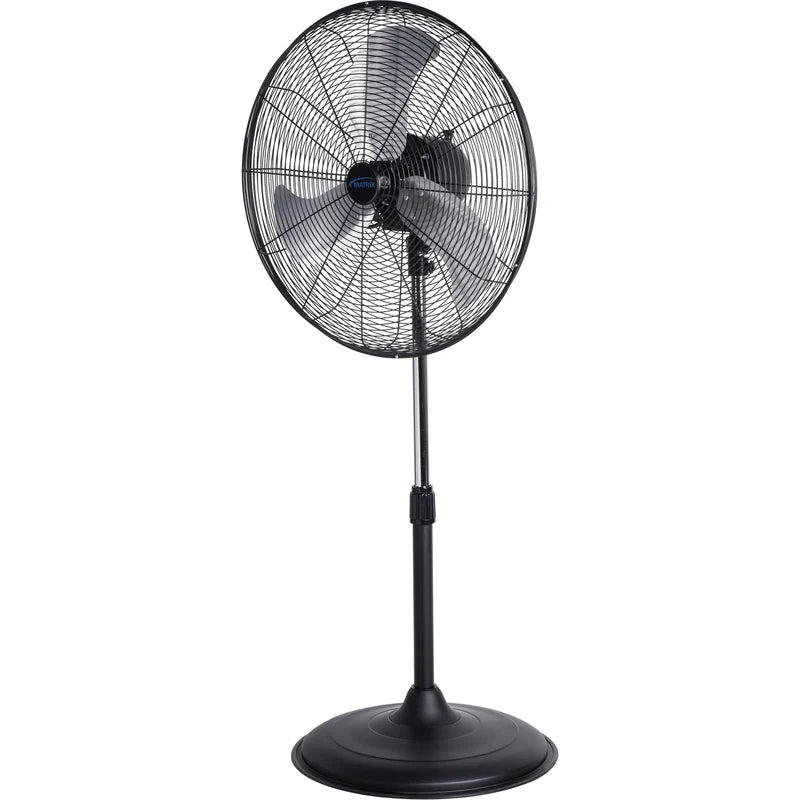

The Matrix Industrial is a 22-inch industrial oscillating pedestal fan with three speed settings and maximum airflow of 4,500 CFM. Its adjustable-height pedestal, heavy-duty round base and all-metal construction provide a practical floor-standing configuration for warehouses, workshops, garages, maintenance areas, production spaces and other commercial work areas.
Broader airflow distribution
Oscillating operation helps distribute airflow across a broader area instead of directing it continuously at one point. Three speed settings let operators adjust circulation for the work area, while the verified maximum airflow reaches 4,500 CFM. Exact low- and medium-speed CFM values are not published, so none are stated here.
Adjustable pedestal configuration
The pedestal height can be adjusted to position the fan head for different work areas and circulation needs. A heavy-duty round base supports the pedestal assembly without relying on an unsupported tip-resistance claim; exact minimum and maximum height measurements are not asserted.
Direct-drive industrial design
The Matrix Industrial 22-Inch Oscillating Pedestal Fan uses a 1/16 HP open motor with direct drive, rated for 120V/60Hz operation at 1.35 A and 1,450 RPM. Its open-motor construction should be used in suitable dry indoor areas. The fan is not described as waterproof, weatherproof, washdown-rated, explosion-proof or suitable for hazardous locations.
Key benefits
- 22-inch industrial pedestal fan delivers up to 4,500 CFM
- Three speeds support adjustable air circulation
- Oscillating operation distributes airflow across a broader work area
- Adjustable-height pedestal accommodates different placement needs
- Heavy-duty round base forms a stable pedestal configuration
- All-metal construction with open-motor direct drive
- 6.5-foot SJT power cord supports practical indoor placement
What's Included
| Quantity |
Item |
| 1 |
Matrix Industrial Products EB239 22-inch oscillating pedestal fan |
Specifications
| Brand |
Matrix Industrial Products |
| Model |
EB239 |
| Product type |
Oscillating pedestal fan |
| Fan style |
Adjustable-height pedestal |
| Diameter |
22 in |
| Usage type |
Industrial |
| Speeds |
3 |
| Maximum airflow |
4,500 CFM |
| Motor |
1/16 HP |
| Motor type |
Open |
| Drive type |
Direct drive |
| Voltage |
120V |
| Frequency |
60Hz |
| Current |
1.35 A |
| Motor speed |
1,450 RPM |
| Construction |
All-metal |
| Adjustable height |
Yes |
| Base |
Heavy-duty round base |
| Power cord |
6.5 ft SJT |
| Country of origin |
China |
| Warranty |
1-year limited |
| UPC |
665179036078 |
| Sold as |
Each |
