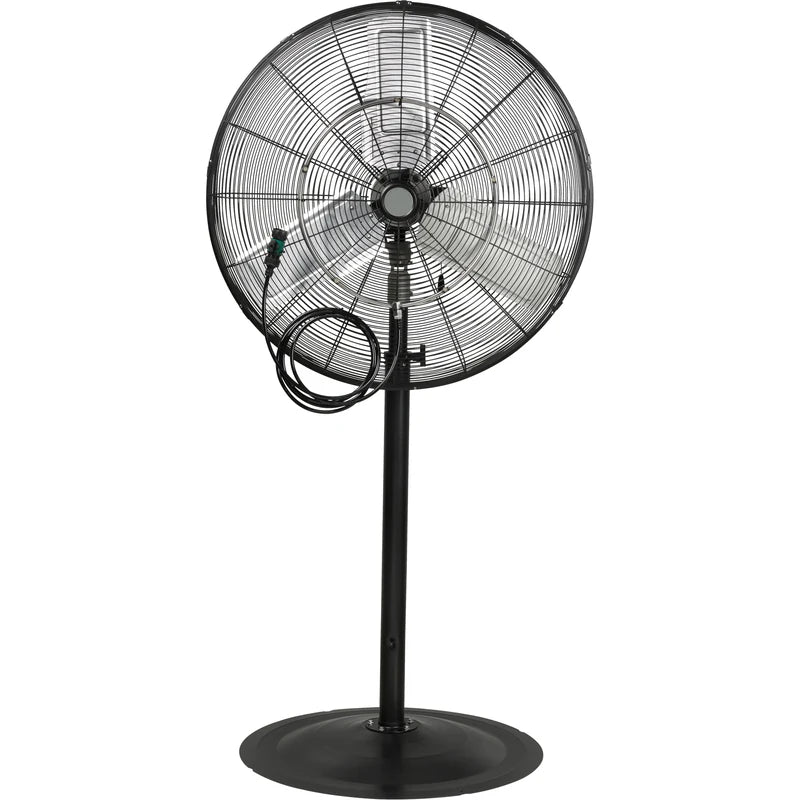

The Matrix Industrial is a heavy-duty 30-inch misting and oscillating pedestal fan with three speed settings and airflow up to 7,200 CFM. Its all-metal construction, adjustable pedestal and 27-inch round base support demanding indoor and outdoor applications. A misting hub and direct-connect hose kit are included, while the enclosed motor is identified by Matrix as waterproof with an IP44 rating. That protection applies specifically to the motor, not to the entire assembled fan.
Three Airflow Levels up to 7,200 CFM
Select 3,780 CFM on low for moderate air movement, 5,470 CFM on medium for increased circulation, or 7,200 CFM on high when maximum verified airflow is needed. The three-speed control makes it practical to adapt output for changing conditions in workshops, warehouses, garages, covered work areas, patios and event spaces.
Mist-Assisted Cooling with Direct Hose Connection
The included misting kit connects directly to a suitable water hose and feeds the misting hub at the fan head. This provides mist-assisted cooling without a built-in tank or reservoir. Water consumption, mist particle size, pressure and temperature reduction are not specified, so no unsupported performance claims are made.
Oscillating Coverage and Adjustable Height
Oscillation distributes airflow across a broader area than a fixed fan position, while the adjustable-height pedestal helps direct air where it is needed. The operating height adjusts from 65 to 78 inches. A heavy-duty 27-inch round base provides a stable footprint for the tall pedestal configuration.
Metal Construction and Motor-Specific IP44 Protection
The 30-Inch Misting Pedestal Fan uses all-metal construction with a chrome grille and black-painted stand and base. Matrix describes the enclosed motor as waterproof and rates it IP44. The rating applies only to the motor and should not be interpreted as permission to submerge or pressure-wash the assembled fan, or to use it beyond the manufacturer’s documented conditions.
Power Connection for the Misting Configuration
A nine-foot power cord provides practical placement flexibility, and the cord is equipped with a UL GFCI plug. Follow the exact-model manual for assembly, hose connection, electrical use and placement; do not defeat the GFCI protection or operate the fan outside its documented conditions.
Key Benefits
- 30-inch misting and oscillating pedestal fan
- Three airflow settings: 3,780, 5,470 and 7,200 CFM
- Included misting kit with direct hose connection
- Oscillation for wider airflow distribution
- Adjustable height from 65 to 78 inches
- Enclosed motor identified as waterproof with IP44 protection
- All-metal construction with chrome grille
- Heavy-duty 27-inch round base
- Nine-foot cord with UL GFCI plug
- Suitable for manufacturer-documented indoor and outdoor use
What's Included
| Quantity |
Item |
| 1 |
Matrix Industrial EA829 30-inch misting and oscillating pedestal fan |
| 1 kit |
Misting kit with direct hose connection |
Water supply note: The misting system connects to a suitable water hose. No water tank or reservoir is included.
Specifications
| Specification |
Value |
| Brand |
Matrix Industrial Products |
| Product type |
Misting and oscillating pedestal fan |
| Fan diameter |
30 in |
| Usage |
Heavy-duty |
| Number of speeds |
3 |
| Low airflow |
3,780 CFM |
| Medium airflow |
5,470 CFM |
| High airflow |
7,200 CFM |
| Motor power |
1/7 HP |
| Motor type |
Enclosed; identified by Matrix as waterproof |
| Motor protection rating |
IP44 |
| Electrical power |
220 W |
| Manual motor specification |
120V AC, direct drive |
| Maximum current consumption |
2.0 A |
| Base diameter |
27 in |
| Adjustable height |
65–78 in |
| Oscillation |
Yes |
| Misting function |
Misting hub |
| Misting kit included |
Yes |
| Water connection |
Direct hose connection |
| Power cord |
9 ft |
| Plug |
UL GFCI plug |
| Construction |
All-metal; chrome grille; black-painted stand and base |
| Weight |
47 lb |
| Use location |
Indoor/outdoor |
| Country of origin |
China |
| Manufacturer warranty |
1-year limited |
| UPC |
843102081979 |
| Sold as |
Each |
