Description

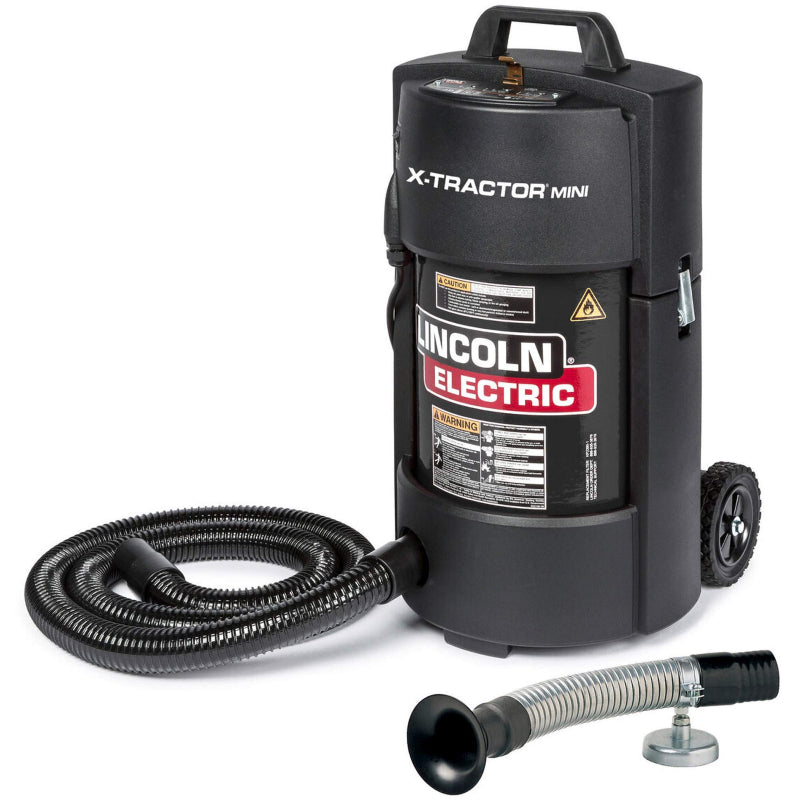

The Lincoln Electric X-Tractor® Mini (Min-Vac) is a compact, high-performance portable welding fume extractor engineered for professional use in workshops, maintenance areas, and fabrication sites. This lightweight yet powerful unit efficiently removes harmful fumes, dust, and fine particulates right at the source—ensuring a cleaner and safer workspace.
Equipped with automatic start/stop sensing based on welding current, the X-Tractor® Mini minimizes energy waste and enhances filter life. Operators can select extraction CFM settings to suit environmental conditions, while the <80 dBA sound level ensures quiet operation. A built-in brush wear monitoring system alerts users after 750 run hours for proactive maintenance.
Designed for convenience, the unit’s transparent housing allows users to easily observe extraction performance, while its plug-and-play setup means it’s ready to work straight out of the box.
Key Features
-
Automatic Start/Stop: Detects welding current for hands-free operation and energy savings.
-
Adjustable Airflow Control: Optimize suction performance to match working conditions.
-
Quiet Performance: Operates below 80 dB(A) for a more comfortable workspace.
-
Maintenance Alerts: Built-in monitor tracks brush usage and alerts after 750 hours.
-
Comprehensive Filtration: Includes LongLife-H main filter, HEPA filter, and pre-filter for superior air purity.
-
Durable & Portable: Compact, lightweight design ideal for fieldwork and small workshops.
Specifications
| Specification |
Details |
| Type |
Min-Vac |
| Motor Power |
2.4 HP |
| Input Current |
12 A |
| Input Hertz |
60 Hz |
| Phase |
1 |
| Sound Level |
<80 dBA |
| Air Flow |
95–108 CFM |
| Voltage |
120 V |
| Dimensions |
Approx. 13" H × 8" W × 16" D |
| Weight |
18 lbs (8.2 kg) |
| Manufacturer’s Warranty |
3 Years |
Includes
-
EN-20 Extraction Nozzle
-
8 ft. (2.4 m) Extraction Hose with Adapter (1-3/4" / 45 mm I.D.)
-
LongLife-H Main Filter (KP2390-1)
-
HEPA Filter (KP2390-4)
-
Pre-Filter (KP2390-3)
-
Filter One-Pak® (KP2390-5)
-
Two Carbon Brushes and Motor Seals
Applications
-
Automotive Repair and Maintenance
-
General & Heavy Fabrication
-
Shipbuilding and Structural Fabrication
-
Robotics and Automation Welding Systems
-
Workshop and Field Maintenance
