The Atrix Omega Supreme Plus HEPA Electronic Vacuum is a portable dry service vacuum for technicians working with static-sensitive equipment. Its 1-US-gallon (3.8 L) HEPA cartridge, ESD-safe hose and service tools, and built-in electronic line filter suit electronics-maintenance work where fine-particle collection and static control are important. The 120V configuration includes a 10 ft. detachable cord and an accessory set stored with the vacuum.
Static Control for Electronics Service

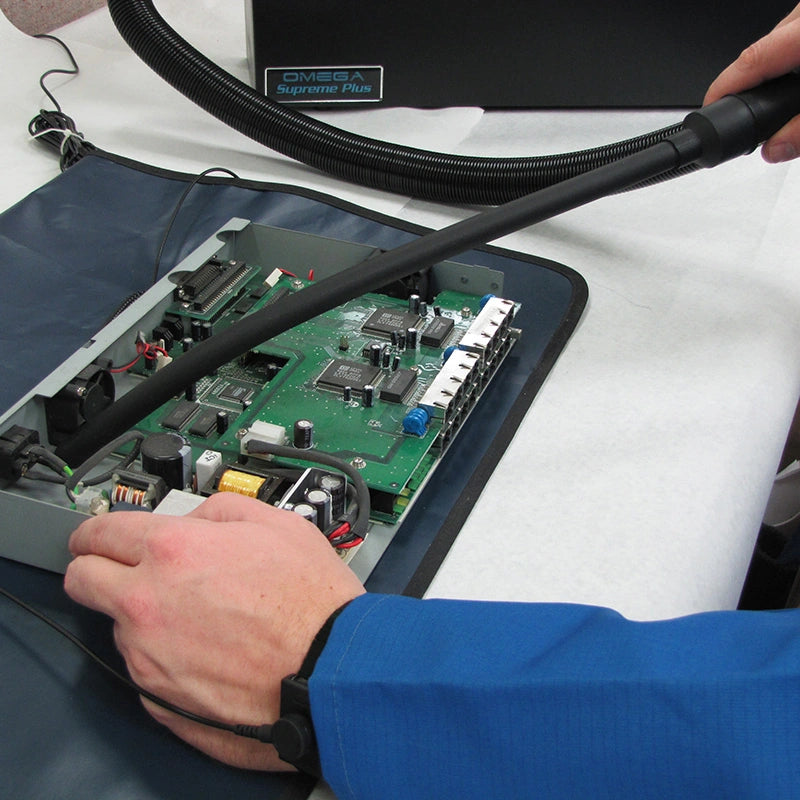

Atrix identifies this exact model for servicing computers, copiers, printers, data centres, ATMs, telecom equipment and other static-sensitive systems. The vacuum provides a static path to ground, with an ESD-safe stretch hose, crevice tool and flexible gooseneck tool included. A built-in electronic line filter helps minimize electromagnetic and radio-frequency interference (EMI/RFI) noise emissions.
Use the specified attachments, a properly grounded outlet and the equipment manufacturer’s service procedures. Static-control features do not replace safe equipment isolation or other required service precautions.
HEPA Collection for Toner and Fine Dry Particulate
The supplied OF612HE cartridge is rated at 99.97% efficiency at 0.3 micron. Atrix identifies toner and currency dust among the materials this model can collect. The cartridge uses 56-pleat media with cellulose, high-performance glass silicate and polyester layers, bringing filtration and collection together in a self-contained housing.
A filter plug is included for cartridge handling. Follow Atrix’s instructions to plug the cartridge before removal, keep the filter installed during operation and dispose of collected material appropriately. HEPA efficiency is a filter-performance rating, not blanket approval for hazardous materials or regulated remediation.
A Compact Service Kit for Mobile Technicians

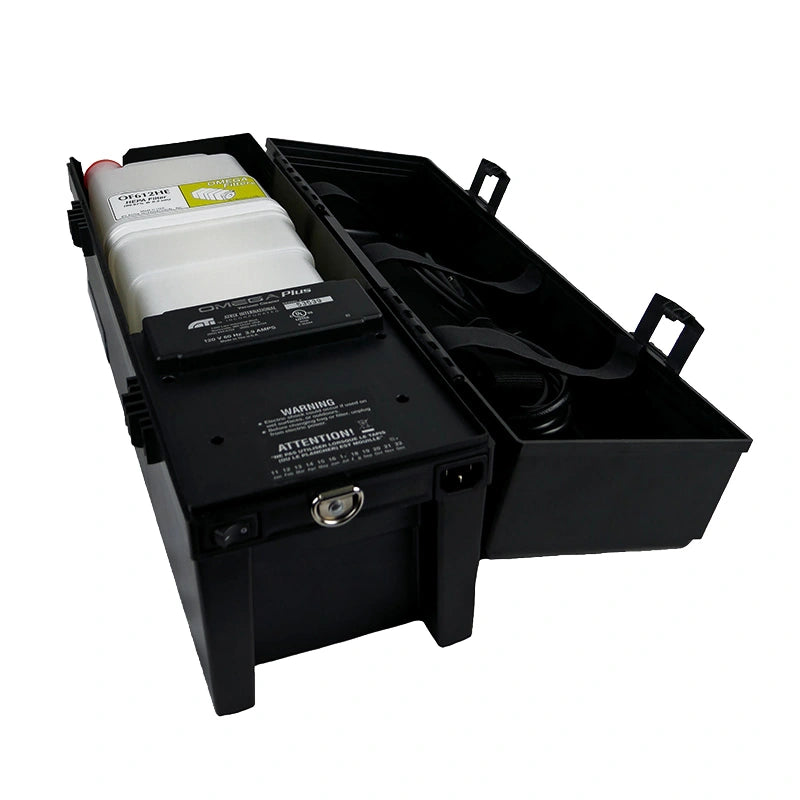

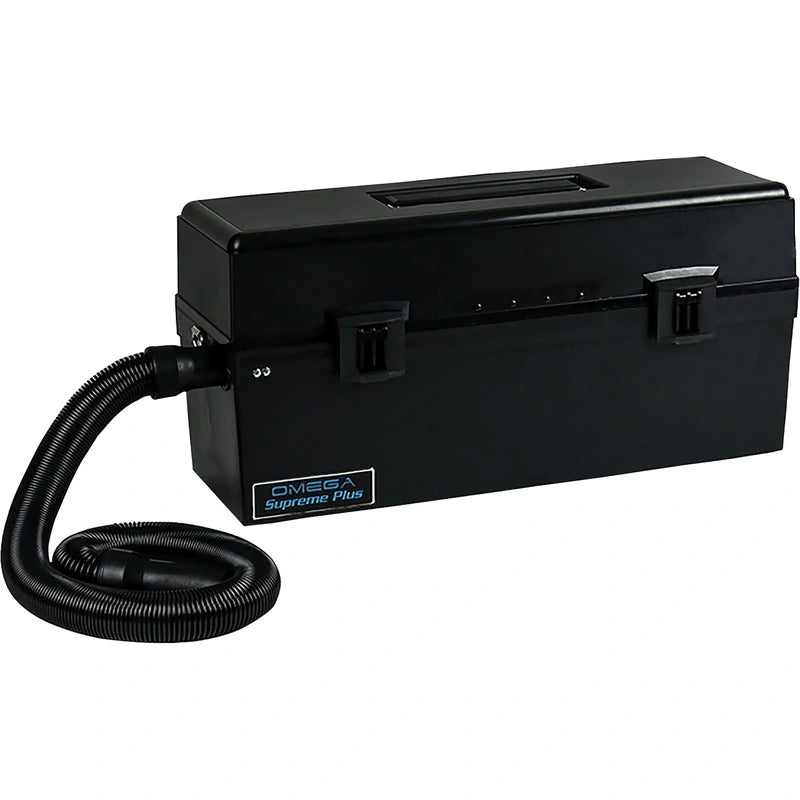

The hose and utensils store in the lid so the core accessories stay with the unit between service calls. An adjustable shoulder strap supports carrying the vacuum, while the 6 ft. stretch hose, narrow crevice tool and flexible gooseneck attachment provide different options for reaching the work area.
The 628W motor provides a published 99 CFM airflow, with a manufacturer-listed sound level of 69 dB. A resettable thermal cutout shuts the unit down if it overheats; follow the manual to check for hose blockages or a cartridge requiring replacement before restarting.
Key Benefits
- Configured for dry electronics-service work on static-sensitive equipment.
- Static path to ground with an ESD-safe hose, crevice tool and gooseneck tool.
- Built-in electronic line filter minimizes EMI/RFI noise emissions.
- One-gallon HEPA cartridge rated at 99.97% efficiency at 0.3 micron.
- Hose and accessories store in the lid for transport between service calls.
- Detachable power cord, shoulder strap and filter plug included.

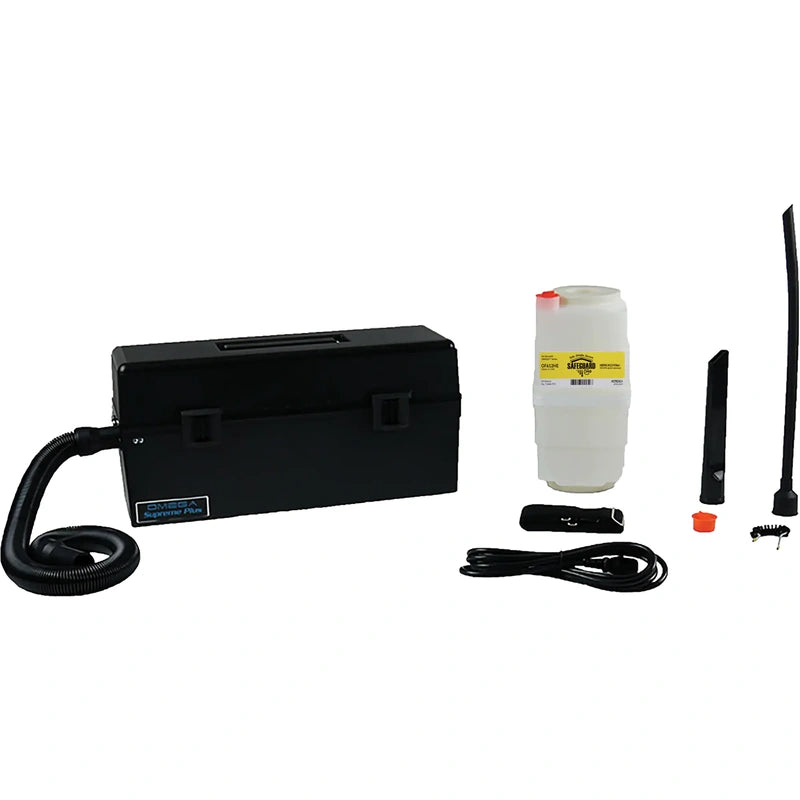

What's Included
| Item |
Atrix Part Number |
Quantity |
| Omega Supreme Plus HEPA Electronic Vacuum |
VACOMEGASLFH |
1 |
| 120V detachable power cord |
31651 |
1 |
| Crevice tool brush |
31652 |
1 |
| ESD-safe crevice tool |
31654 |
1 |
| ESD-safe flexible gooseneck tool |
31657 |
1 |
| 6 ft. ESD-safe stretch hose |
31661 |
1 |
| Immediate Containment HEPA cartridge |
OF612HE |
1 |
| Filter plug |
410017 |
1 |
| Adjustable shoulder strap |
AVPA016 |
1 |
Product Specifications
| Specification |
Details |
| Brand |
Atrix |
| Manufacturer model |
VACOMEGASLFH |
| Vacuum type |
Dry electronics-service vacuum |
| Capacity |
1 US gallon (3.8 L) |
| Filtration |
HEPA; 99.97% efficiency at 0.3 micron |
| Included filter |
OF612HE |
| Filter media |
56 pleats; cellulose, high-performance glass silicate and polyester layers |
| ESD features |
Static path to ground; ESD-safe hose, crevice tool and gooseneck tool |
| Electronic line filter |
Built-in filter to minimize EMI/RFI noise emissions |
| Electrical configuration |
120V, corded North American configuration |
| Power |
628 W |
| Airflow |
99 CFM |
| Published sound level |
69 dB |
| Motor |
Ametek Advantek II; manufacturer-rated 1,000 hours |
| Power cord |
10 ft., detachable; 31651 |
| Hose |
6 ft. ESD-safe stretch hose; 31661 |
| Hose inside / outside diameter |
1 in. / 1.25 in. |
| Dimensions (L × W × H) |
20 × 6.25 × 9.25 in. |
| Product weight |
11.85 lb. (5.39 kg) |
| Storage |
Hose and tools store in lid |
| Motor protection |
Resettable thermal cutout |
| Manufacturer warranty |
3-year limited; subject to Atrix terms and exclusions |
Suitable Applications and Operating Limits
Suitable manufacturer-identified applications include computer and printer maintenance, copier servicing, data-centre equipment, ATM and banking equipment, gaming systems, robotics and telecom service. Select attachments and work procedures appropriate to the equipment being cleaned.
Dry indoor use only. Do not operate outdoors or on wet surfaces, pick up burning or smoking material, or collect flammable or combustible liquids or use the vacuum where those liquids may be present. Keep the lid closed and secured during operation. No asbestos, lead, silica or combustible-dust approval is established by this listing.
Atrix states that a vacuum used for lead or other hazardous waste cannot be serviced. Review the manual and application requirements before handling potentially hazardous material.
Replacement Filter Options
The compatible replacement HEPA cartridge is OF612HE. Atrix’s exact-model brochure also lists OF912HE, a HEPA cartridge with a static-dissipative body, as an optional accessory. It is sold separately and is not the cartridge supplied with this package.
