The Atrix Omega HEPA Abatement Vacuum is a portable dry specialty vacuum for professional work where fine-particulate filtration and contained collection matter. Its 1-US-gallon (3.8 L) collection capacity, 99 CFM airflow and self-contained HEPA cartridge provide a compact option for mobile technicians, maintenance teams and specialist cleanup crews. This is the 120V North American configuration, supplied with its hose, cleaning tools, filter cartridge and detachable power cord.
HEPA Filtration in a Self-Contained Cartridge
The included OF612HE filter cartridge is rated at 99.97% efficiency at 0.3 micron. Its 56-pleat media has three layers: cellulose, high-performance glass silicate and polyester. The cartridge collects dry particulate inside a contained housing, and supplied plugs close the filter and hose openings for handling and storage.
Before removing a used cartridge, follow Atrix’s filter-change procedure, including inserting the filter plug. Dispose of the cartridge according to the requirements for the material collected. Do not operate the vacuum without its filter.

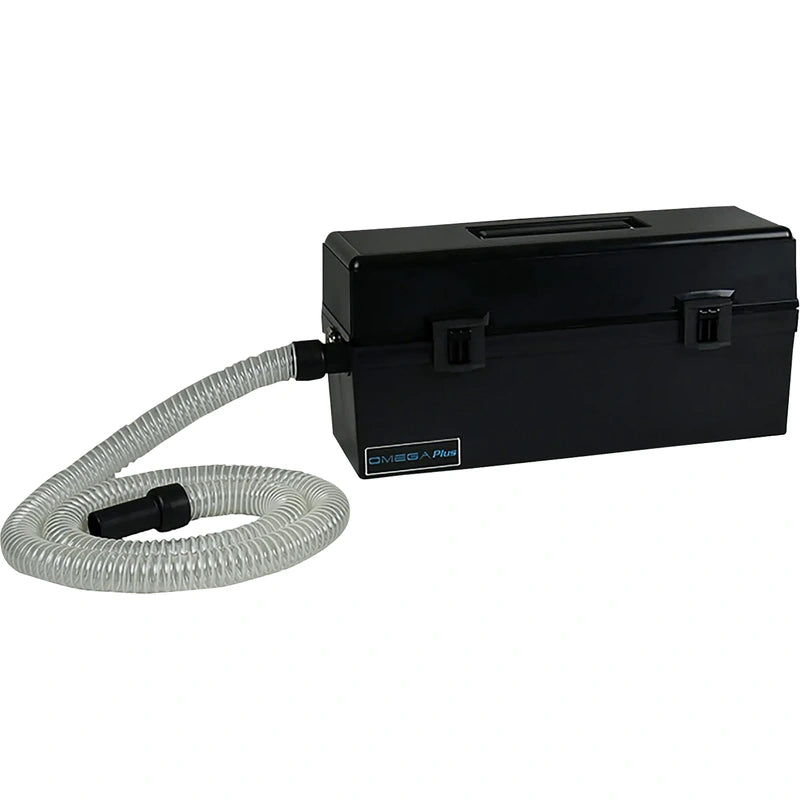

A Portable Setup with Tools Stored Together

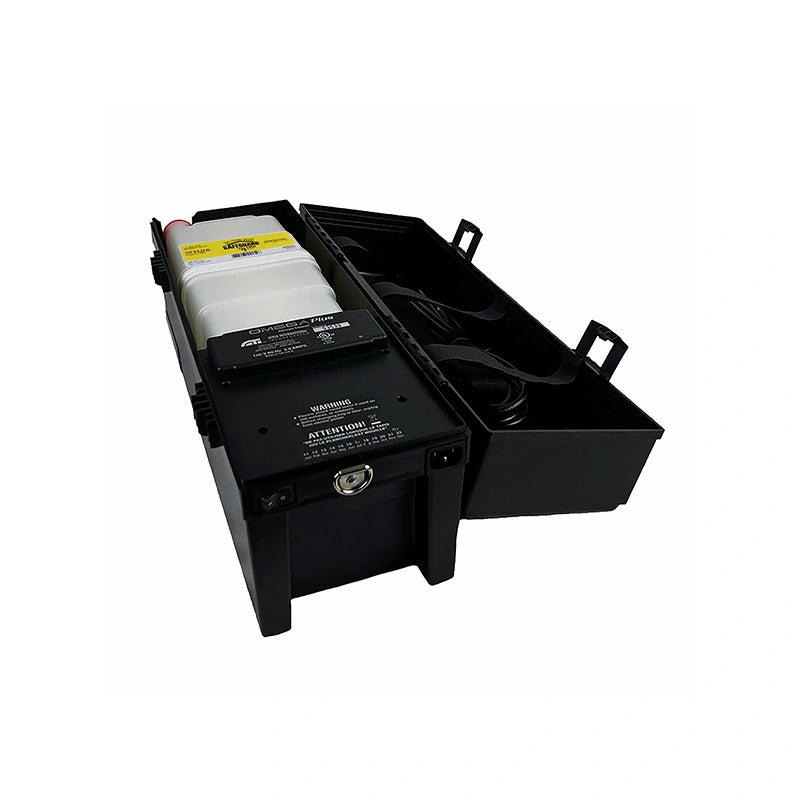

The toolbox-style housing keeps the hose and tools in the lid storage area, helping mobile users keep the accessories with the vacuum between work areas. An adjustable shoulder strap is included. The 5.6 ft. clear hose, flexible gooseneck tool, crevice tool and utility nozzle provide different ways to reach the work surface without needing to purchase the basic attachment set separately.
120V Operation and Motor Protection
A 628W Ametek Advantek II motor supplies the published 99 CFM airflow. The detachable 10 ft. power cord connects to a properly grounded outlet. A resettable thermal cutout stops the vacuum if it overheats; follow the manual to check for a blocked hose or a filter requiring replacement before resuming work. Keep the lid fully closed and secured during operation.
Key Benefits
- One-gallon dry collection in a portable toolbox-style vacuum.
- HEPA cartridge rated at 99.97% efficiency at 0.3 micron.
- Filter and hose plugs help contain collected debris during handling.
- Hose and cleaning tools store in the lid.
- Detachable power cord and adjustable shoulder strap included.
- Crevice, flexible-reach and utility attachments supplied.
Suitable Applications and Operating Limits

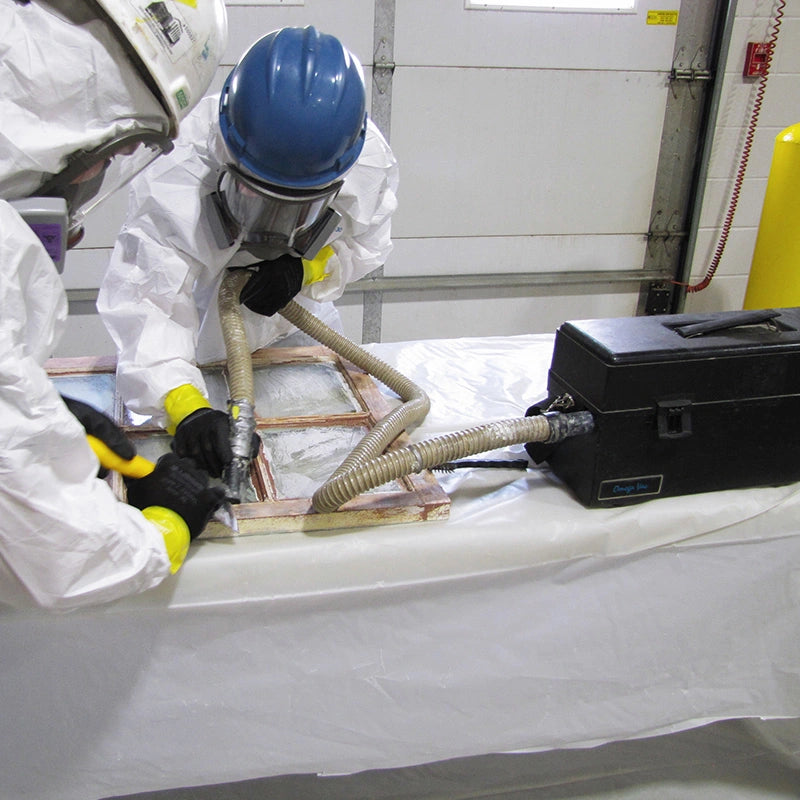

Atrix lists this model for dry-particulate work involving lead dust in renovation, repair and painting, silica dust, fiberglass, mold remediation, core sampling and laboratory work. Select the equipment, filter and work procedures for the specific material and site requirements before use.
The HEPA efficiency rating describes filter performance; it does not by itself establish whole-vacuum certification or approval for a regulated remediation job. Do not treat this unit as universally suitable for hazardous or combustible materials. This is a dry vacuum: do not use it outdoors or on wet surfaces, pick up burning or smoking material, or collect flammable or combustible liquids or use it where those liquids may be present.
Service limitation: Atrix states that a vacuum used to collect lead or other hazardous waste cannot be serviced. Review the manufacturer’s operating and service instructions before assigning it to such work.

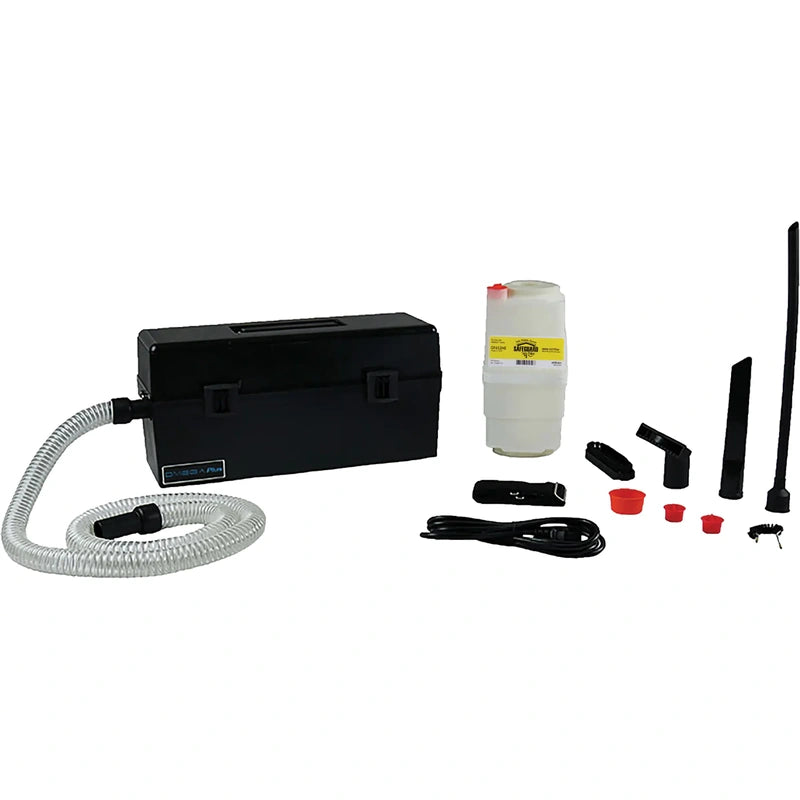

What's Included
| Item |
Atrix Part Number |
Quantity |
| Omega Plus HEPA Abatement Vacuum |
VACOMEGAH |
1 |
| 120V detachable power cord |
31651 |
1 |
| Crevice tool brush |
31652 |
1 |
| Crevice tool |
730030 |
1 |
| Flexible gooseneck tool |
31657 |
1 |
| 5.6 ft. clear hose |
AVPA008 |
1 |
| Utility nozzle |
AVPA011 |
1 |
| Utility nozzle brush |
AVPA017 |
1 |
| HEPA filter cartridge |
OF612HE |
1 |
| Small intake filter plug |
410017 |
1 |
| Large exhaust filter plug |
AVPA004 |
1 |
| Adjustable shoulder strap |
AVPA016 |
1 |
| Hose end plugs |
AVPA005 |
2 |
Product Specifications
| Specification |
Details |
| Brand |
Atrix |
| Manufacturer model |
VACOMEGAH |
| Vacuum type |
Dry specialty / abatement vacuum |
| Collection capacity |
1 US gal. (3.8 L) |
| Filtration |
HEPA cartridge; 99.97% efficiency at 0.3 micron |
| Filter media |
56 pleats, three layers: cellulose, high-performance glass silicate and polyester |
| Included filter model |
OF612HE |
| Electrical configuration |
120V North American configuration |
| Power consumption |
628 W |
| Airflow |
99 CFM |
| Published sound level |
73 dB |
| Motor |
Ametek Advantek II; manufacturer-rated 1,000 hours |
| Power cord |
10 ft., detachable |
| Hose length |
5.6 ft. |
| Hose inside diameter |
1 in. |
| Hose outside diameter |
1.25 in. |
| Dimensions (L × W × H) |
20 × 6.25 × 9.25 in. |
| Product weight |
10.90 lb. (4.94 kg) |
| Accessory storage |
Hose and tools store in lid |
| Motor protection |
Resettable thermal cutout |
Replacement Filter Cartridges
Atrix identifies OF612HE as the compatible replacement HEPA cartridge. Its exact-model brochure also lists OF612HE-IC as an optional HEPA-certified Omega Series cartridge. These are replacement or optional purchases; the supplied cartridge is OF612HE. Confirm the cartridge requirements for the work being performed. A filter’s certification does not establish blanket regulatory approval for the complete vacuum or application.
